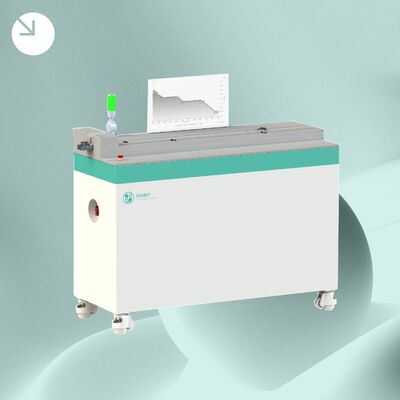

The Tapered Wire Diameter Measurement System is designed for high-precision inspection of ultra-fine wires, including medical guidewires and other critical components. Equipped with a high-resolution laser measurement module, the system is capable of measuring wire diameters as small as 0.01 mm, ensuring exceptional accuracy for demanding applications.
The system is available in both single-axis and dual-axis measurement configurations. The dual-axis version enables precise evaluation of guidewire ovality, providing a more comprehensive dimensional assessment beyond simple diameter measurement.
A key differentiator lies in Universal Balloon Medical’s proprietary product fixation mechanism combined with a passive vibration isolation platform. This design significantly reduces measurement errors caused by micro-movements and environmental vibrations during operation, thereby enhancing overall measurement accuracy and repeatability.
The system features a streamlined and user-friendly front-end software interface, allowing for intuitive operation and clear visualization of measurement results. Each tested product is assigned a unique identification number, with all data automatically stored in a local database, enabling full traceability at the individual product level.
Measurement results are presented in a clear and quantitative manner, accurately reflecting the true diameter profile and taper characteristics of the wire. The system demonstrates outstanding consistency, with a standard deviation (Stdev.s) of less than 0.0005 across three repeated measurements of the same sample, highlighting its high stability, precision, and reliability.
This solution is particularly well-suited for high-end manufacturing environments where stringent quality control and data traceability are essential.
